Solar ACDB

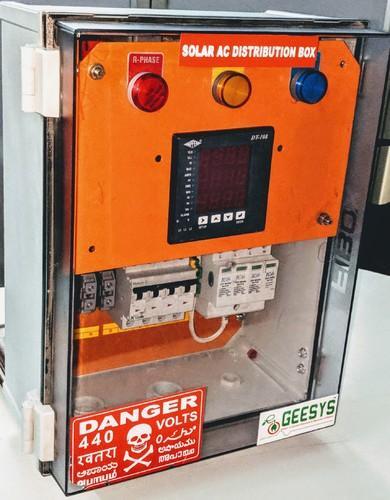

The ACDB box is made of epoxy powder coated metal casting. Three feeders are provided in ACDB with MCB of Required capacity installed at each feeder in the ACDB. One Electronic Energy Meter, ISI make, is provided in ACDB to measure the consumption of power from SPV Power Plant. A separate dedicated feeder from conventional line to PCU as well as ACDB is also provided. A separate change over switch of required capacity is provided in the ACDB to isolate the existing connected load from the solar system & switch it over to the existing convention power (Mains), in case of emergency.Solar ACDistribution Boxes are installed immediately after the solar PV Grid-tie inverter.

Solar ACDB

The main purpose of the ACDB is to eliminate the operation of the load at the immediate PCU O/P end and also provide flexible operation of different loads like Street lights, general home or office lights and optional loads that optionally operated (On/Off). GEESYS PV AC/DC distribution box consists of DC distribution unit and AC distribution unit. The DC distribution unit is mainly used to collect the DC from the PV panels and supply it to the inverter. The AC distribution unit is used to provide the AC converted by the inverter for the grid connection interface. GEESYS DBW1.5~20K AC/DC Distribution Box is mainly used in small and medium PV systems and it may provide a complete PV system solution for the customers together with our small and medium power inverters. GEESYS offer several purpose built ACDBs like ACDB for tied inverter, ACDB for off grid inverter.

Features

Features & options available in solar ACDB include Terminals, MCB/MCCB, Contactor, class 1, class 0.5S solar NET energy meter, multi function meter, earth fault protection unit, IP protection rating from IP21 to IP65 levels, AC SPD class B, SPD class B+C, ON change over switch, Relays, Fuses, Disconnectors and etc.

  • 1P, AC Distribution box ( 1in 1out)
  • 3P, AC Distribution box ( 1in 1out)
  • 1P, AC Distribution box ( 1in 1out) with automatic Grid Cut-off
  • 3P, AC Distribution box ( 1in 1out) with automatic Grid Cut-off
  • 1P, AC Distribution box ( 1in 1out) with Energy Meter
  • 3P, AC Distribution box ( 1in 1out) with MFM
  • 3P, AC Distribution box ( 1in 1out) with automatic Grid Cut-off and MFM
  • 3P, AC Distribution box ( 1in 1out) with MFM and Reverse Power Protection
  • 3P, AC Distribution box ( 1in 1out) with MFM and Timer
