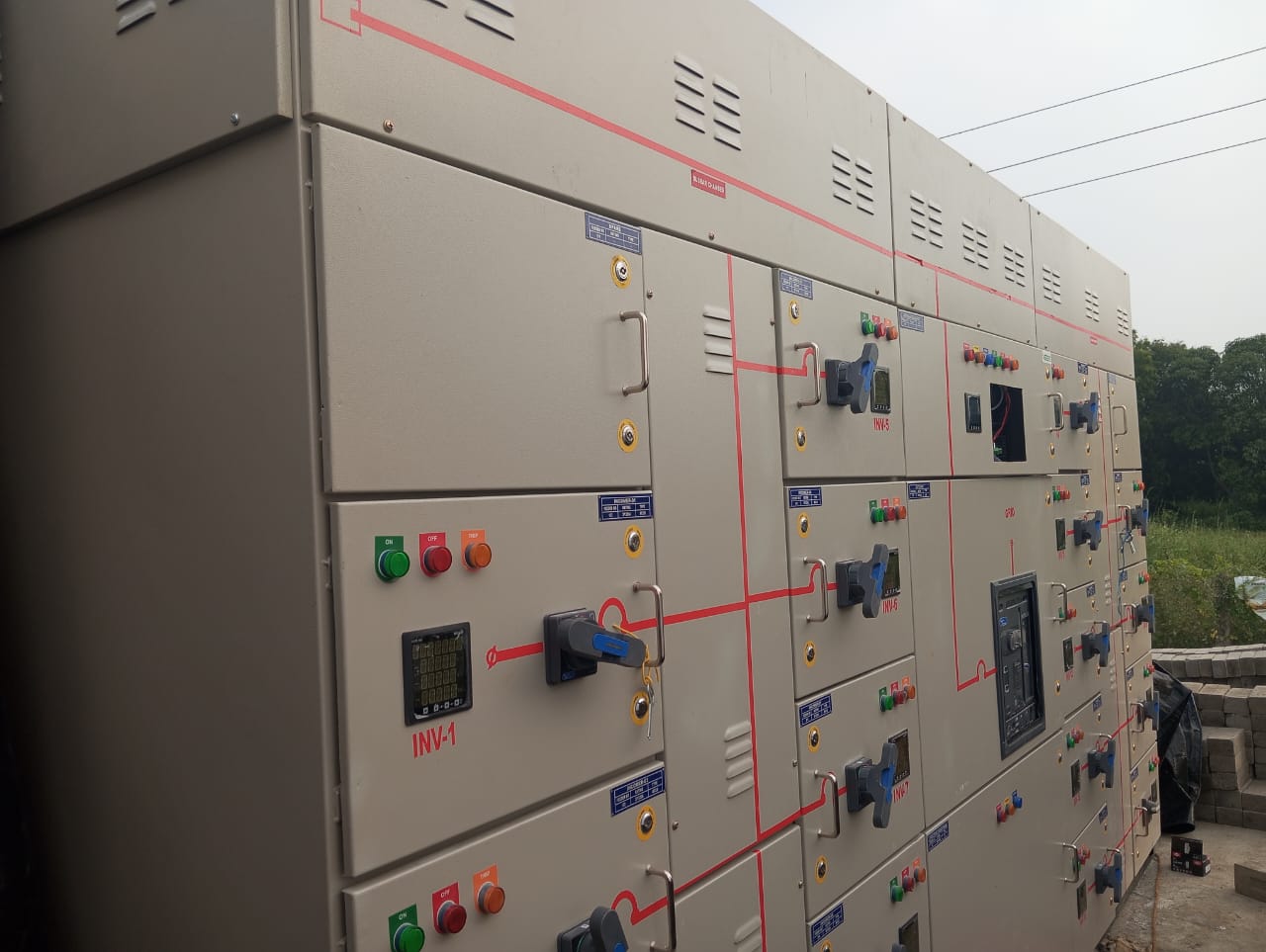

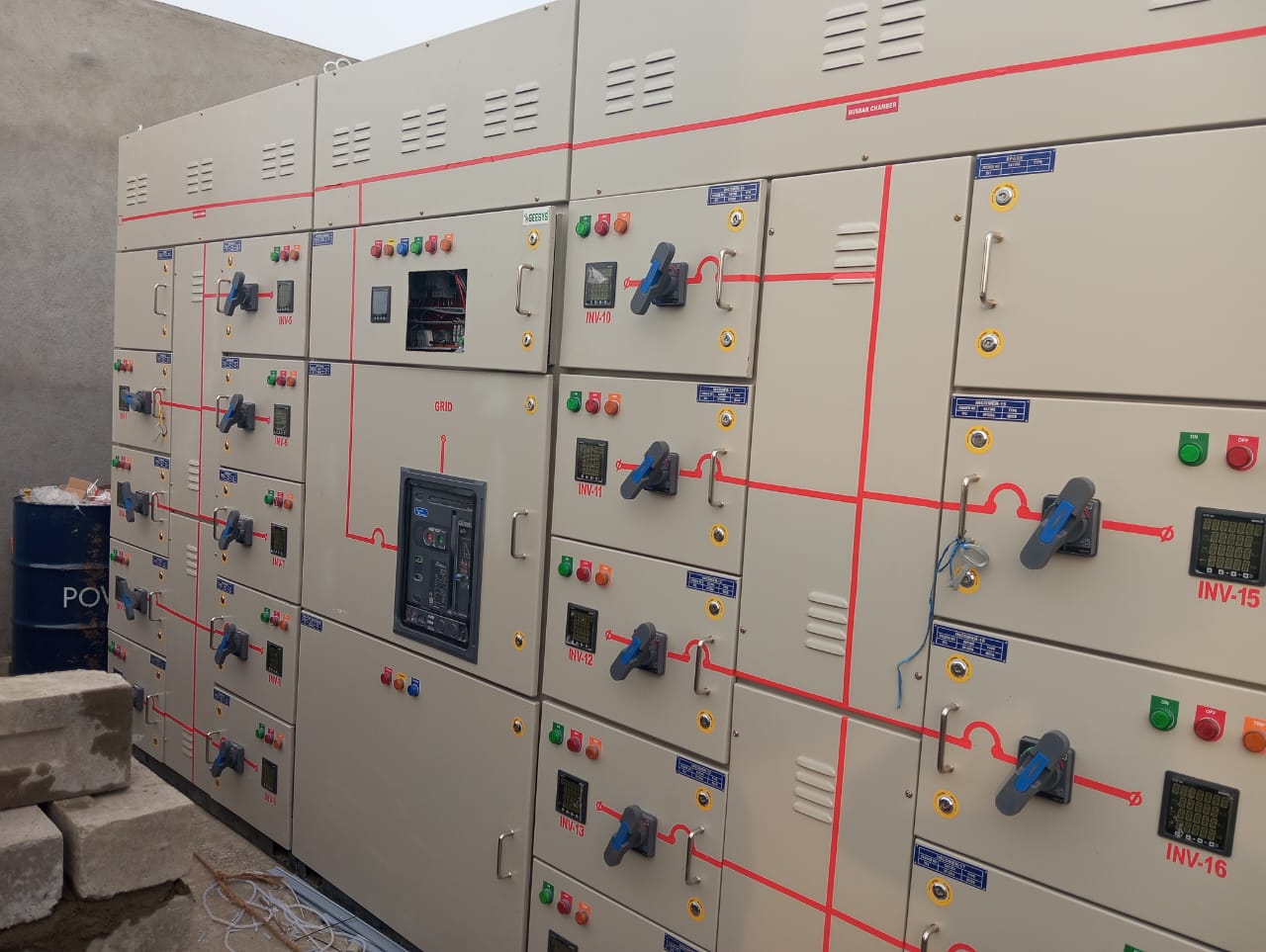

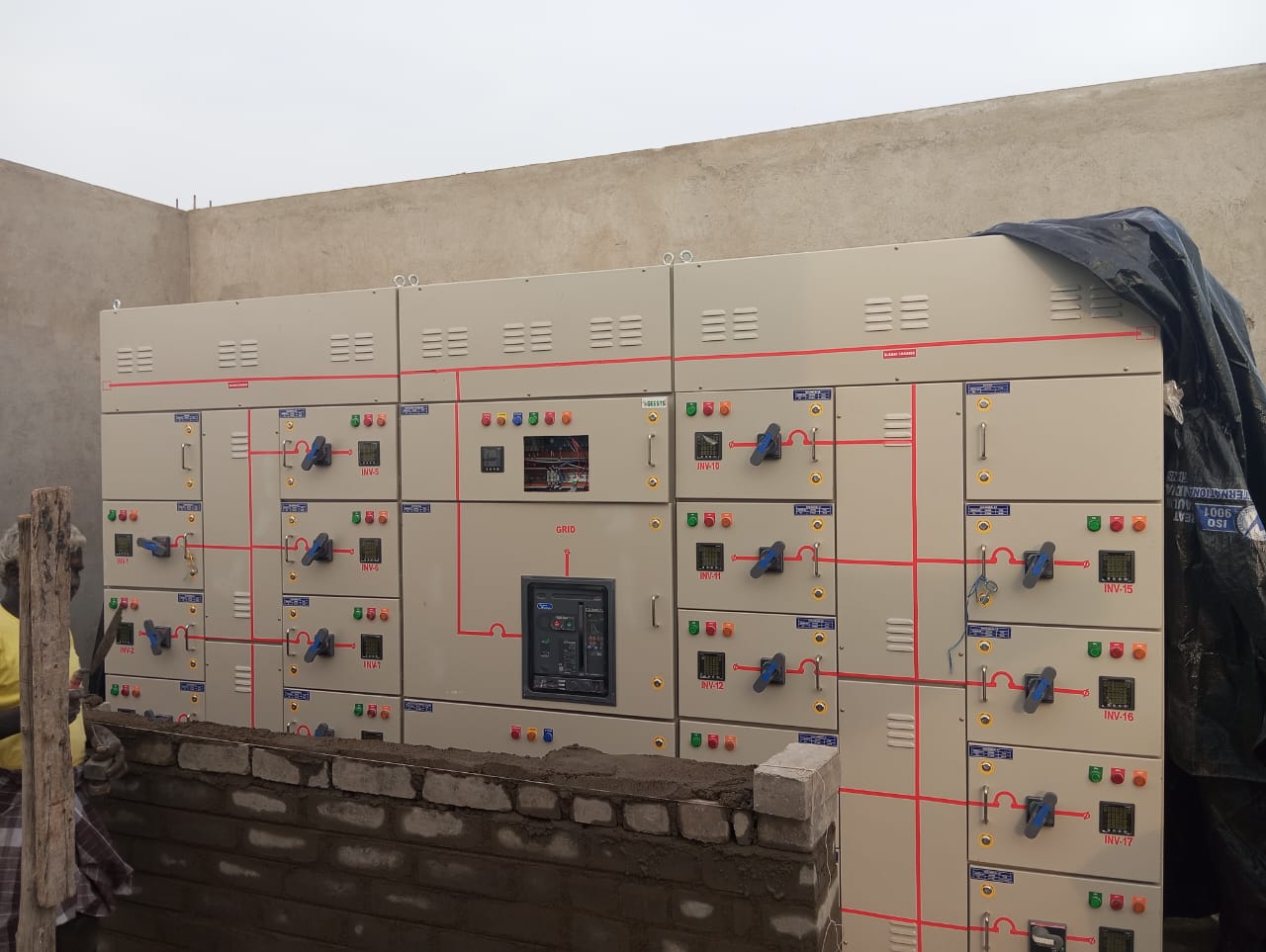

| Standards and Compliance |
| Compliance |
IEC 61439-1 and 2, IEC 61641, IS 8623, IEC 60947-2 |
| Power Rating |
| Ue / Ui / Uimp |
415-800 VAC / 1250 V / 8 kV |
| Rated Frequency (f) |
50 / 60 Hz |
| Electrical Characteristics |
| Rated Current (InA) |
Up to 6300 A |
| Short Circuit Withstand (Icw) |
100 kA / 1 s |
| Internal Arc Withstand |
85 kA / 0.5 s (IEC 61641) |
| Busbar System |
Double-deck aluminium, 6 mm thick, < 0.7 A/mm2 |
| Busbar Supports |
20 mm SMC @ 400 mm |
| ACB / MCCB |
IEC 60947-2 compliant |
| Termination |
Both-side vertical ACB termination |
| Form of Separation |
Form 3B |
| Utilization Category |
A (IEC 60947-2) |
| Monitoring and Control |
| PLC + HMI |
Integrated PLC with touch screen HMI for breakers and inverter generation |
| Remote Monitoring |
Free via Ethernet / Modbus |
| SPD Type |
Type-1 + 2 with backup fuse |
| Auxiliary Transformer |
15 to 50 kVA (dry type, step-down) |
| Temperature Compensation |
Active digital temperature compensation |
| Cooling and Smoke Detection |
Temperature-controlled fans with smoke sensors |
| Indications |
ON / OFF / TRIP for all feeders |
| Degree of Protection |
| IP Rating |
IP54 / IP2X |
| Ambient Temperature |
40 to 50 deg C |
| Seismic Compliance |
Zone V |
| Mechanical Characteristics |
| Enclosure |
CRCA, 7-tank pretreatment, powder coated |
| Structure Type |
Indoor / Outdoor (under sunshade), single front |
| Cable Access |
Front / Rear |
| Cooling |
Forced / temperature-controlled |
| Resistance to Corrosion |
| Tests |
IEC 60068-2-30 / IEC 60068-2-11 |
| Plastic Components |
| Property |
Flame retardant, halogen-free |
| Applications |
| Typical Usage |
Solar plants 3 to 5 MW requiring smart monitoring and predictive maintenance |
